Photo Coupler, IGBT Gate Driver, SSR

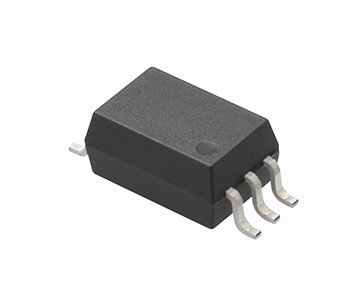

The ELS511 series devices each consist of an infrared emitting diode, optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output-transistor collector increase the speed by several orders of magnitude over conventional phototransistor couplers by reducing the base-collector capacitance of the input transistor. The ELS611 series devices are consists of an infrared emitting diode optically coupled to a high speed
integrated photo detector logic gate with a st ora ble output. The devices in a 6-pin small DIP package.


  • Compare with 8Pin DIP package. save 50% volume
  • 1M High Speed Transistor /10M High Speed Logic Output
  • High isolation voltage between input and output (Viso=5000 Vrms)
  • Pb free and RoHS and Halogen free compliant

Other Applications

  • Digital logic ground isolation
  • RS-232C line receiver
  • PLC Controller
  • Low input current line receiver
  • Microprocessor bus isolation
  • Current loop receiver
