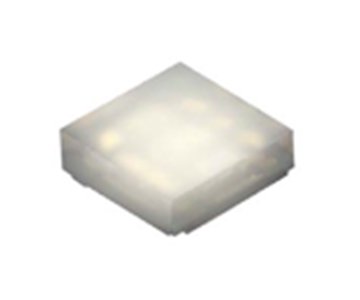

Surface Mount (RGB+IC)/19-C47


․The 19-C47 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher
packing density, reduced storage space and finally smaller equipment to be obtained.
․Besides, lightweight makes them ideal for miniature applications. etc.
․The 19-C47 with a 3-channels LED driver with 8 bit PWM linear control.


• Package in 8mm tape on 7″ diameter reel.
• Compatible with automatic placement equipment.
• Compatible with infrared and vapor phase reflow solder process.
• Full-color type.
• 8 bit PWM control with 256 grayscales for each RGB chip.
• Pb-free.
• The product itself will remain within RoHS compliant version.
• Compliance with EU REACH.
• Compliance Halogen Free.(Br <900 ppm Cl <900 ppm Br+Cl <1500ppm)

Other Applications

• Indoor/Outdoor LED video display.
• Full color LED light strip.
• LED decorative lighting.
• Backlighting in dashboard and switch.
• Telecommunication: indicator and backlighting in telephone and fax.
• Flat backlighting for LCD
• switch and symbol.
• Gaming Exterior.
