Photo Coupler, IGBT Gate Driver, SSR

8Pin Wide Body DIP-DC

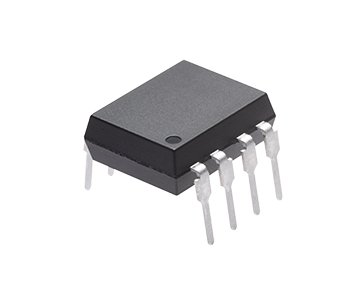

The ELW13X are consists of an infrared emitting diode optically coupled to a high speed photo detector output. It is pack aged in a 8-pin wide body package and available in wide lead spacing and SMD options.


• High speed 1Mbit/s, 5Mbit/s, 10Mbit/s
• High isolation voltage between input and output (Viso=5000 Vrms )
• Guaranteed performance from 0°C to 70°C
• Pb free and RoHS and Halogen free compliant

Other Applications

• Line receivers
• Telecommunication equipments
• Power transistor isolation in motor drives
• Replacement for low speed phototransistor photo couplers
• Feedback loop in switch-mode power supplies
• Home appliances
• High speed logic ground isolation
