The EL6XXA series are solid state relays containing an AlGaAs infrared LEDs on the light emitting side (input side) optically coupl ed to a high voltage output detector circuit. The detector consists of a photovoltaic diode array and MOS FETs on the output side. They can enable AC/DC and DC only output connections.

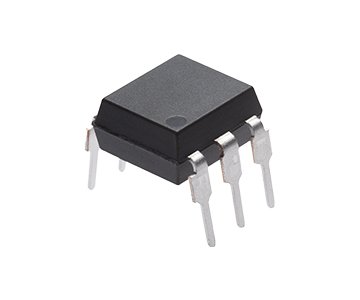

The single channel configuration is equivalent to 1 form A EMR . They are packaged in 6 pin DIP and available in surface mount SMD option.


• 60 to 600V output withstand voltage
• High isolation voltage between input and output (Viso=5000 Vrms )
• Pb free and RoHS and Halogen free compliant

Other Applications

• Exchange equipment
• Measurement equipment
• Industrial Controls
• Security
