VISIBLE LED

Surface Mount (RGB+IC)/12-23C

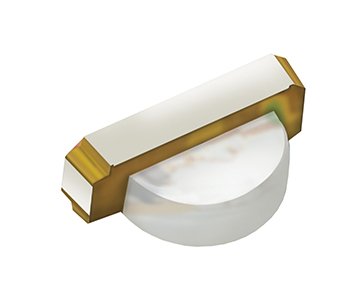

12-23C

The 12 -23C SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. Besides , lightweight makes them ideal for miniature applications. The 12 23C with a 3 channels LED driver with 8 bit PWM linear control.

Features

• Package in 8mm tape on 7″ diameter reel.
• Compatible with automatic placement equipment.
• Compatible with infrared and vapor phase reflow solder process.
• Full-color type.
• 8 bit PWM control with 256 grayscales for each RGB chip.
• Pb-free.
• The product itself will remain within RoHS compliant version.
• Compliance with EU REACH.
• Compliance Halogen Free.(Br <900 ppm Cl <900 ppm Br+Cl <1500ppm)

Other Applications

• Indoor/Outdoor LED video display.
• Full color LED light strip.
• LED decorative lighting.
• Backlighting in dashboard and switch.
• Telecommunication: indicator and backlighting in telephone and fax.
• Flat backlighting for LCD
• switch and symbol.
• Gaming Exterior.
