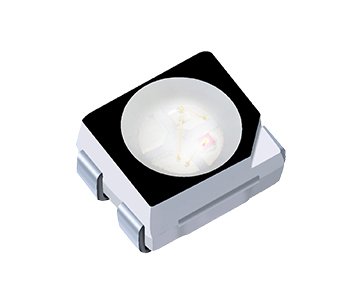

Surface Mount PLCC LED (Reflector)/Top View PLCC4/67-03


The 67-03 series is available in soft orange, green, blue, and yellow. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.


 P-LCC-4 package.
• White package and black surface.
• Colorless clear window.
• Ideal for backlight and light pipe application.
• Inter reflector.
• Wide viewing angle.
• Suitable for vapor-phase reflow
• Infrared reflow and wave solder processes.
• Computable with automatic placement equipment.
• Available on tape and reel (8mm Tape).
• Pb-free.
• The product itself will remain with RoHS compliant version

Other Applications

• Telecommunication: indicator and backlighting in telephone and fax.
• Flat backlight for LCD’s
• switches and symbols.
• Light pipe application.
• General use.
